BZMX2B-4-AX200塑壳式断路器伊顿默勒塑壳断路器

BZMX2B-4-AX200塑壳式断路器伊顿默勒塑壳断路器

  • 分类：Eaton 伊顿穆勒
  • 简介：塑壳断路器，磁性断路器，200A，25ka 4P，IP10，伊顿MCCB，有库存，施耐德，ABB
  • 交货周期：4-6周
  • 发布时间：2025-11-21 09:09:43
  • 点击量：26

索取报价联系客服

BZMX2B-4-AX200-塑壳断路器Eaton Moeller MCCB

BZMX Breaker.png


BZMX 规格说明

产品系列断路器
保护功能系统和电缆保护
标准/批准IP10
释放系统热磁释放
安装类型固定的
帧尺寸BZMX
极数4 极
标准配置螺纹连接
数据表PDF
描述BZMX系列断路器是一种高性能、多功能、易用的断路器，具有多种保护功能：配电保护、电机保护。分断能力为25kA至50kA，额定电流范围为10A至630A

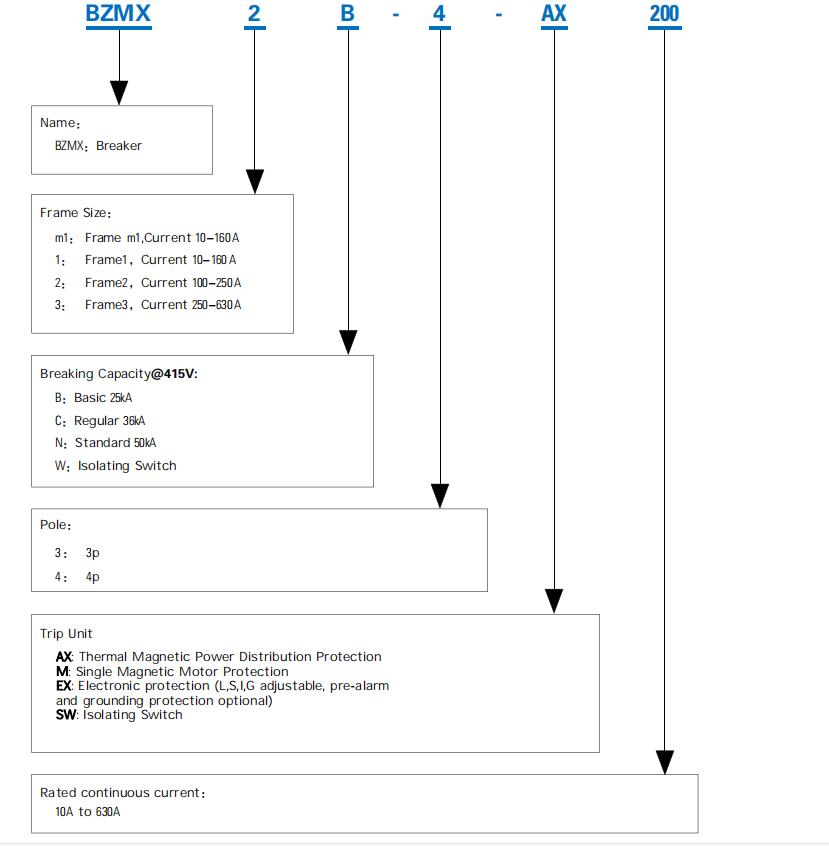

BZMX 模型描述

Model Specification.png

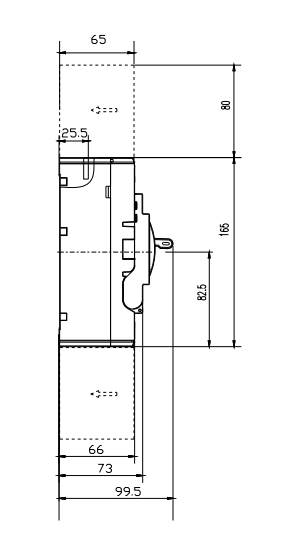

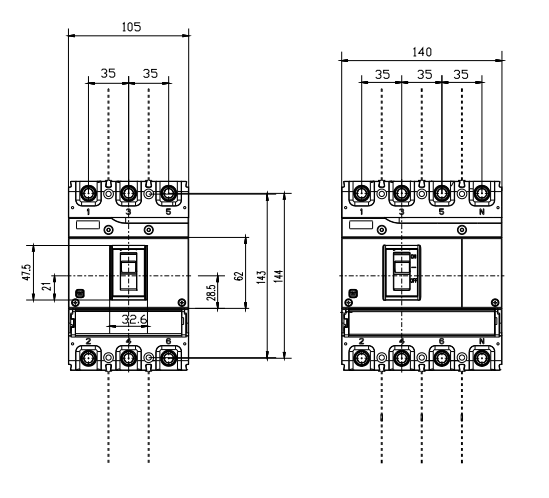

BZMX  尺寸

BZMX2B-4-AX200 Dimension.pngBZMX2B-4-AX200 Dimension.png





BZMX 热磁配电保护

BZMX热磁配电保护
BZMXm1B-3-AX10BZMXm1B-4-AX10BZMX1C-3-AX10BZMX1C-4-AX10BZMX1N-3-AX10BZMX1N-4-AX10
BZMXm1B-3-AX16BZMXm1B-4-AX16BZMX1C-3-AX16BZMX1C-4-AX16BZMX1N-3-AX16BZMX1N-4-AX16
BZMXm1B-3-AX20BZMXm1B-4-AX20BZMX1C-3-AX20BZMX1C-4-AX20BZMX1N-3-AX20BZMX1N-4-AX20
BZMXm1B-3-AX25BZMXm1B-4-AX25BZMX1C-3-AX25BZMX1C-4-AX25BZMX1N-3-AX25BZMX1N-4-AX25
BZMXm1B-3-AX32BZMXm1B-4-AX32BZMX1C-3-AX32BZMX1C-4-AX32BZMX1N-3-AX32BZMX1N-4-AX32
BZMXm1B-3-AX40BZMXm1B-4-AX40BZMX1C-3-AX40BZMX1C-4-AX40BZMX1N-3-AX40BZMX1N-4-AX40
BZMXm1B-3-AX50BZMXm1B-4-AX50BZMX1C-3-AX50BZMX1C-4-AX50BZMX1N-3-AX50BZMX1N-4-AX50
BZMXm1B-3-AX63BZMXm1B-4-AX63BZMX1C-3-AX63BZMX1C-4-AX63BZMX1N-3-AX63BZMX1N-4-AX63
BZMXm1B-3-AX80BZMXm1B-4-AX80BZMX1C-3-AX80BZMX1C-4-AX80BZMX1N-3-AX80BZMX1N-4-AX80
BZMXm1B-3-AX100BZMXm1B-4-AX100BZMX1C-3-AX100BZMX1C-4-AX100BZMX1N-3-AX100BZMX1N-4-AX100
BZMXm1B-3-AX125BZMXm1B-4-AX125BZMX1C-3-AX125BZMX1C-4-AX125BZMX1N-3-AX125BZMX1N-4-AX125
BZMXm1B-3-AX140BZMXm1B-4-AX140BZMX1C-3-AX140BZMX1C-4-AX140BZMX1N-3-AX140BZMX1N-4-AX140
BZMXm1B-3-AX160BZMXm1B-4-AX160BZMX1C-3-AX160BZMX1C-4-AX160BZMX1N-3-AX160BZMX1N-4-AX160
BZMX2B-3-AX100BZMX2B-4-AX100BZMX2C-3-AX100BZMX2C-4-AX100BZMX2N-3-AX100BZMX2N-4-AX100
BZMX2B-3-AX125BZMX2B-4-AX125BZMX2C-3-AX125BZMX2C-4-AX125BZMX2N-3-AX125BZMX2N-4-AX125
BZMX2B-3-AX140BZMX2B-4-AX140BZMX2C-3-AX140BZMX2C-4-AX140BZMX2N-3-AX140BZMX2N-4-AX140
BZMX2B-3-AX160BZMX2B-4-AX160BZMX2C-3-AX160BZMX2C-4-AX160BZMX2N-3-AX160BZMX2N-4-AX160
BZMX2B-3-AX180BZMX2B-4-AX180BZMX2C-3-AX180BZMX2C-4-AX180BZMX2N-3-AX180BZMX2N-4-AX180
BZMX2B-3-AX200BZMX2B-4-AX200BZMX2C-3-AX200BZMX2C-4-AX200BZMX2N-3-AX200BZMX2N-4-AX200
BZMX2B-3-AX225BZMX2B-4-AX225BZMX2C-3-AX225BZMX2C-4-AX225BZMX2N-3-AX225BZMX2N-4-AX225
BZMX2B-3-AX250BZMX2B-4-AX250BZMX2C-3-AX250BZMX2C-4-AX250BZMX2N-3-AX250BZMX2N-4-AX250
BZMX3B-3-AX250BZMX3B-4-AX250BZMX3C-3-AX250BZMX3C-4-AX250BZMX3N-3-AX250BZMX3N-4-AX250
BZMX3B-3-AX315BZMX3B-4-AX315BZMX3C-3-AX315BZMX3C-4-AX315BZMX3N-3-AX315BZMX3N-4-AX315
BZMX3B-3-AX350BZMX3B-4-AX350BZMX3C-3-AX350BZMX3C-4-AX350BZMX3N-3-AX350BZMX3N-4-AX350
BZMX3B-3-AX400BZMX3B-4-AX400BZMX3C-3-AX400BZMX3C-4-AX400BZMX3N-3-AX400BZMX3N-4-AX400
BZMX3B-3-AX500BZMX3B-4-AX500BZMX3C-3-AX500BZMX3C-4-AX500BZMX3N-3-AX500BZMX3N-4-AX500
BZMX3B-3-AX630BZMX3B-4-AX630BZMX3C-3-AX630BZMX3C-4-AX630BZMX3N-3-AX630BZMX3N-4-AX630
